Flexible Fluorine (ETFE) Resin Tubing (Dissipative Type)
Fluids
Flammable fluids, chemicals, ink, UV ink, food, beverages, powder
Applications
- Piping for Preventing Static Electricity
- Flammable Fluids at Chemical Factories
- High Volatile Fluids such as Alcohol and Fragrance
- Paints and Solvents
Characteristics
- Chemical Resistance：Since the inner layer is made of ETFE Fluorine Resin, it resists most of the chemical substances.
- Dissipative：Due to the use of conductive resin and metal fiber, electrical resistivity (Conductive: Dissipative Grade) is achieved no matter how long the hose is.
- Compliance with Guideline：The value of electrical resistivity is compliant with ISO 8031 and IEC/TS 60079-32-1: 2013 (Explosive Atmosphere: Part 32-1: Guideline for Dangerous Static Electricity).
- Non-Adhesiveness：Since fluorine resin is superior in non-adhesiveness, the fluids could be washed out easily.
- Vacuum(Spring Type)：Can be used in vacuum conditions, keeping high stability in its shape.
- Plasticizer-Free：Does not contain plasticizer and it is an oil-free hose.
- UV Cut：Shield the ultraviolet (Wavelength: from 240nm to 800nm) over 99%.
- Easy to Cut：Cut mark is showing on the hose every meter, so it is easy to cut the length you prefer.

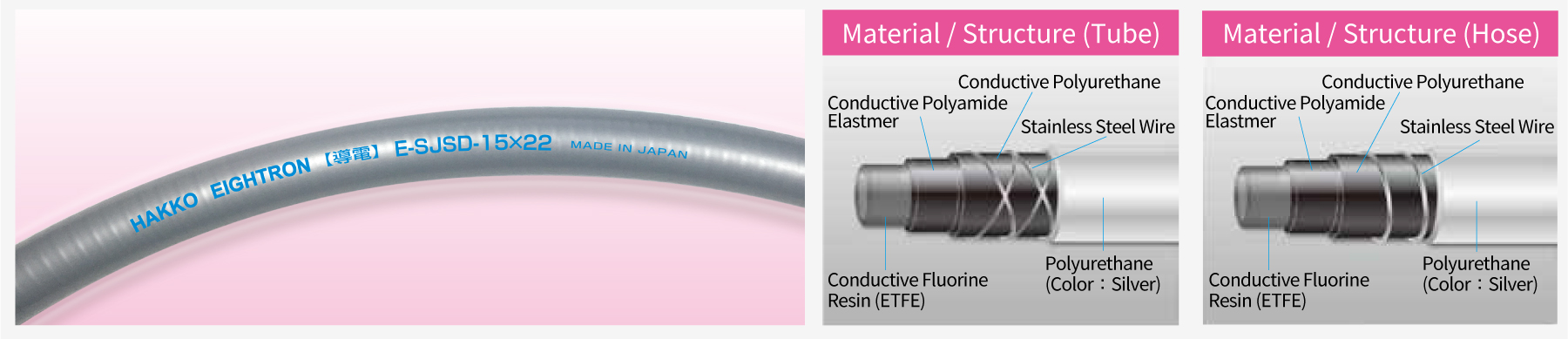

Materials / Structure
Specification
Tube
| Model Number | O.D. x I.D. (mm) | Working Pressure Mpa (20℃) | Working Pressure Mpa (80℃) | End-to-end resistance R | Min. Bend Radius (mm) | Temp. Range (℃) | Standard Length (M) | Color |
|---|---|---|---|---|---|---|---|---|
| E5SJD-0906 | 9 x 6 | 0~0.6 | 0~0.2 | 1k Ω ≦ R ＜ 1M Ω | 45 | -20~80 | 20 | Silver |
| E5SJD-1208 | 12 x 8 | 0~0.6 | 0~0.2 | 1k Ω ≦ R ＜ 1M Ω | 60 | -20~80 | 20 | Silver |
Hose
| Model Number | O.D. x I.D. (mm) | Working Pressure Mpa (20℃) | Working Pressure Mpa (80℃) | End-to-end resistance R | Min. Bend Radius (mm) | Temp. Range (℃) | Standard Length (M) | Color |
|---|---|---|---|---|---|---|---|---|
| E5SJSD-40 | 18 x 12 | -0.1~0.5 | -0.1~0.25 | 1k Ω ≦ R ＜ 1M Ω | 85 | -20~80 | 20 | Silver |
| E5SJSD-50 | 22 x 15 | -0.1~0.5 | -0.1~0.25 | 1k Ω ≦ R ＜ 1M Ω | 105 | -20~80 | 20 | Silver |
| E5SJSD-60 | 26 x 19 | -0.1~0.4 | -0.1~0.2 | 1k Ω ≦ R ＜ 1M Ω | 135 | -20~80 | 20 | Silver |
| E5SJSD-80 | 33 x 25 | -0.1~0.4 | -0.1~0.2 | 1k Ω ≦ R ＜ 1M Ω | 175 | -20~80 | 20 | Silver |
